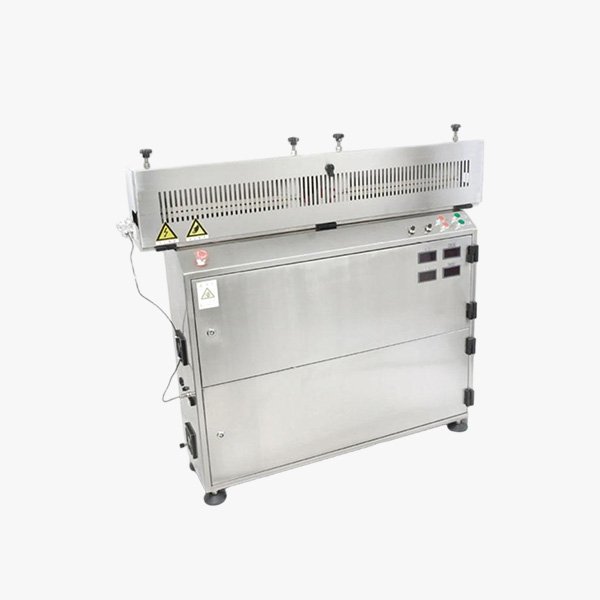

Model: T-500AS
Specifications:
Number of plasma electrodes: 2
– Length of single electrode: 500 mm
– Built-in synchronization mechanism: Automatic start/stop based on resistance sensing
– Alarm system: Cabinet door open alarm during operation; mainboard fault alarm
– Input power interference suppression: Built-in
– Power system: 20 kHz solid-state transistor plasma generator; AC 220V (±10%)
– Max. input current: 3A (50/60 Hz)
– Output power range: 0.3 kVA – 1 kVA
– Weight: Approx. 30 kg
– Housing material: 304 stainless steel
– Housing dimensions: 300 × 900 × 930 mm
– Operating environment: 0–50°C
– Cable processing diameter range: 0–20 mm
– Processing speed: 0–60 m/min
– Effective distance (processor to workpiece surface): 3–5 mm
– Ingress protection rating: IP54
– Application: In-line surface modification of cable insulation materials
Technical Advantages
– Designed specifically for high-speed wire and cable production lines; enables continuous in-line processing without affecting production speed
– Effectively increases cable surface tension, resolving issues such as poor ink adhesion, blurred printing, and peeling
– Uniform and stable processing; causes no damage to insulation or sheathing layers and does not affect electrical performance
– Compact design; can be installed directly upstream of printing or inkjet marking equipment, requiring minimal space
– Adjustable discharge intensity and processing speed to accommodate various wire diameters and materials
– Instant operation (no warm-up required); simple to use with low maintenance costs
– Utilizes physical surface activation; free from chemicals, pollution, and residues; safe and eco-friendly
– Compatible with various cable sheath materials, including PVC, PE, PP, XLPE, TPU, and rubber
Solutions
– Provides specialized surface activation solutions for the wire and cable industry (pre-printing/pre-marking)
– Solves issues such as print detachment, coding abrasion, and poor adhesion caused by smooth surfaces, oil contamination, or low surface energy
– Enhances the bonding strength between ink/coding and the wire surface, ensuring clear, durable, and scratch-resistant markings
– Suitable for a full range of wire and cable types, including power cords, data cables, electronic wires, communication cables, and sheathed cables
– Enables stable, continuous, in-line surface pretreatment for high-speed production lines
– Improves print quality and reduces defect rates, meeting factory inspection standards and scratch-resistance requirements
