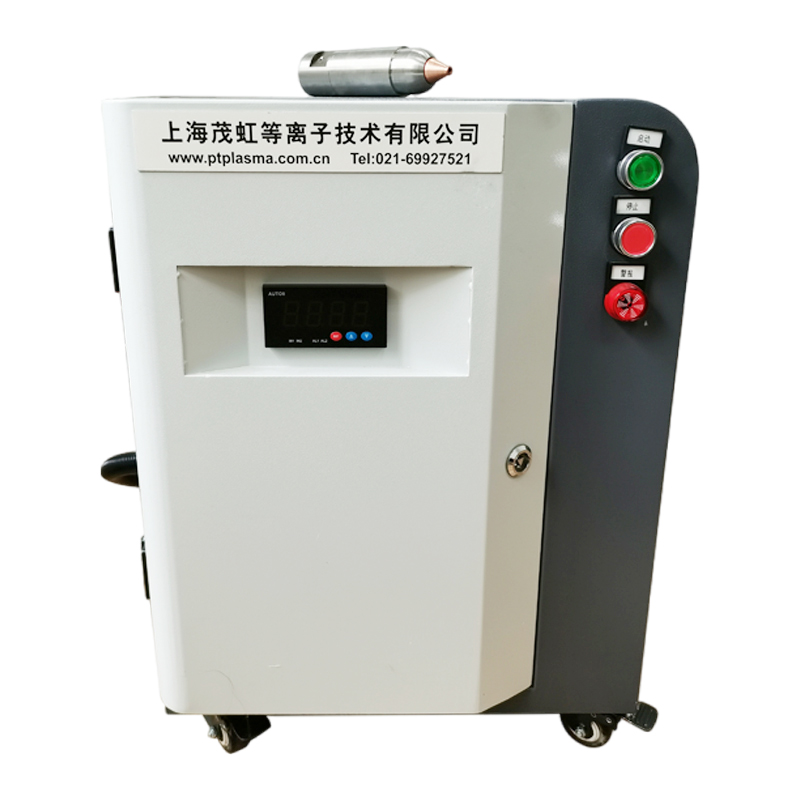

Model: P-100AE
Specifications:
Number of nozzles: 1–2
– Spray gun weight: 1.5 kg
– Unit dimensions: 450 × 620 × 430 mm (W × H × D)
– Spray gun cable length: 0–6 m (standard: 2.5 m)
– External synchronization signal interface: One 12V interface
– Alarm monitoring: Air pressure, system fault, and flame-out alarms
– Power input interference protection: Power isolation + dual EMC filtering
– Power system: 20 kHz solid-state transistor plasma generator; AC 220V (±10%)
– Max. output power per plasma source: 1000 W
– Flame temperature at nozzle outlet: <170°C
– Operating gas (per gun): Oil-free and moisture-free compressed air or inert gas; pressure 0.5–1 bar
– Effective treatment width: 0–15 mm
– Material processing speed: <400 m/min
– Effective treatment distance (nozzle to material): 3–15 mm
– Ingress protection rating: IP54
– Applications: Online surface modification of polymer profiles (EPDM, TPE, PVC, PE, PP, PVF2, LDPE, etc.) and materials such as metal, ceramics, silicone, and glass.
