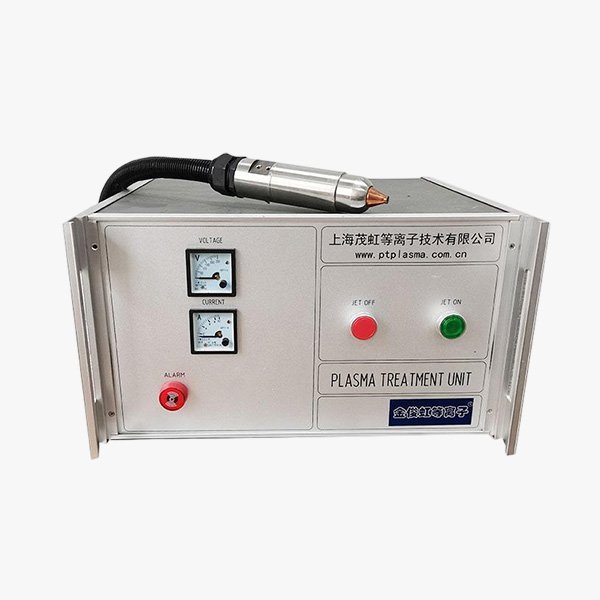

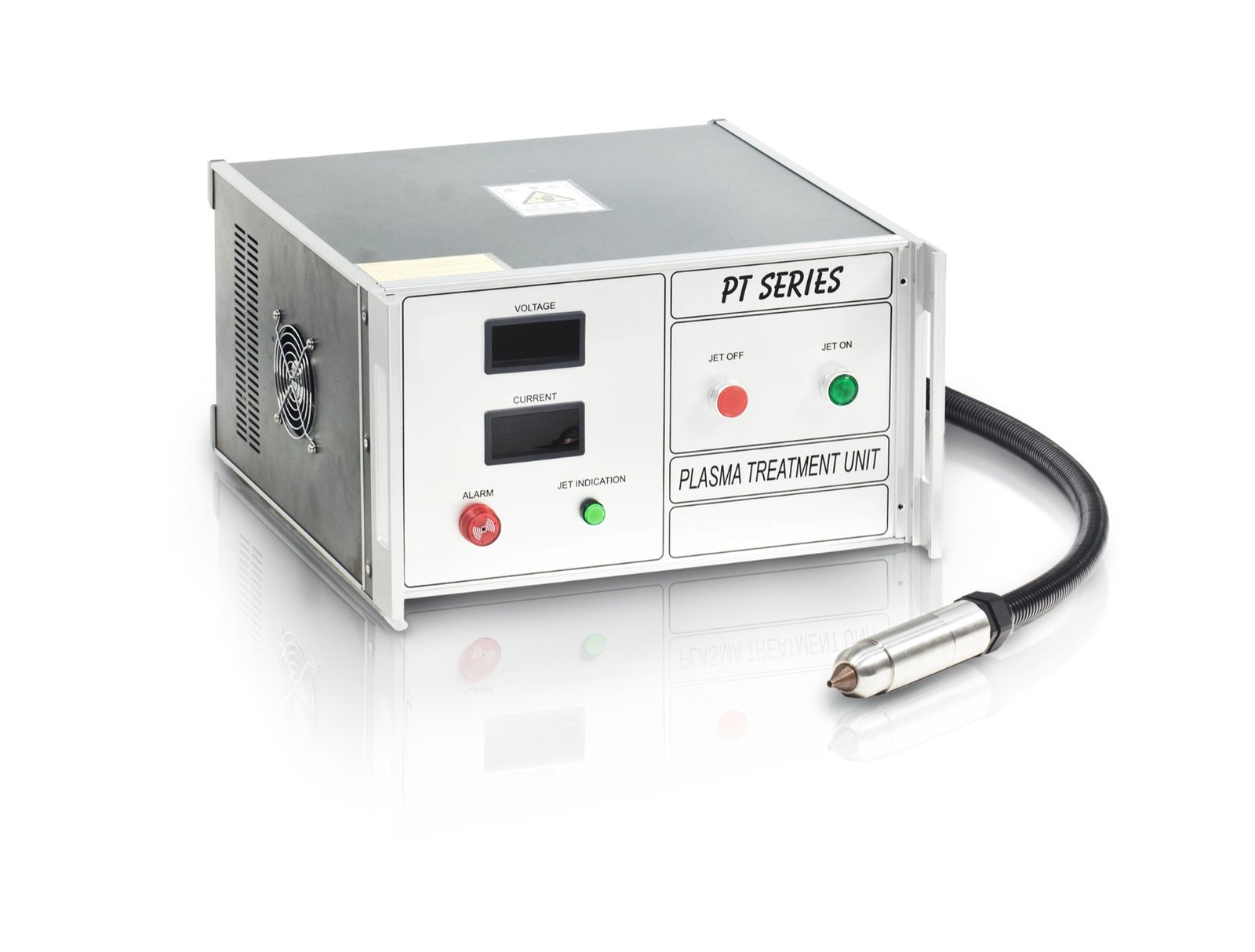

Model: P-100A
Specifications:
Number of nozzles: 1
– Spray gun weight: 1.2 kg
– Unit dimensions: 440 × 240 × 460 mm (W × H × D)
– Spray gun cable length: 0–6 m (standard: 2.5 m)
– External synchronization signal interface: One 12V interface
– Alarm/Monitoring: Air pressure, system fault, and flame-out alarms
– Power input interference protection: Power isolation + dual EMC filtering
– Power system: 20 kHz solid-state transistor plasma generator; AC 220V (±10%)
– Single spray gun output power: 800 W
– Operating environment: 0–50°C
– Single spray gun working gas: Oil-free and moisture-free compressed air; pressure 0.5–1 bar
– Effective treatment width: 0–15 mm
– Material processing speed: <300 m/min
– Effective treatment distance (nozzle to material): 3–15 mm
– Application scope: Same as P-100AE; better suited for low-power, small-batch inline processing
Technical Advantages
– Utilizes atmospheric plasma jet technology; offers high surface treatment intensity and stable, long-lasting activation effects
– Flexible handheld operation allows for localized, targeted treatment; suitable for processing large or immobile products
– Concentrated and stable plasma jet thoroughly removes oil, mold release agents, and organic contaminants, effectively enhancing bonding and coating adhesion
– Instant start-up; requires no vacuum chamber; simple operation; ideal for on-site commissioning, small-batch production, and rework
– Compact and portable design; compatible with assembly lines or 3-axis motion platforms
– Adjustable process parameters to meet surface treatment requirements for various heat-resistant materials
– Purely physical treatment process; no chemical solvents; eco-friendly and clean with no residual contamination
Solutions
– Provides localized surface activation solutions for workpieces made of heat-resistant metals, rubber, rigid plastics, glass, ceramics, etc.
– Solves issues such as poor bonding, adhesive failure, ink detachment during printing, and insufficient coating adhesion on heat-resistant materials.
– Suitable for handheld, targeted plasma treatment of large workpieces, irregularly shaped parts, and products unsuitable for oven processing.
– Offers flexible surface treatment solutions for on-line touch-ups, rework repairs, and small-batch sampling.
– Provides efficient surface pre-treatment for heat-resistant products, including automotive components, hardware, rigid plastics, and sealing strips.
